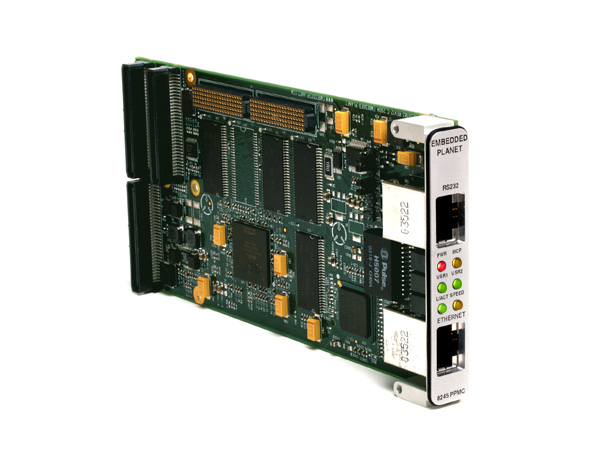

EP8245M

The EP8245M is a PrPMC compatible single board computer module that takes advantage of the Freescale PowerQUICCC II MPC8245 PowerPC processor. It is a highly versatile board that can operate as stand alone module or in PrPMC monarch and non-monarch modes on a carrier board such as a Compact PCI blade. By integrating all of the features of the PowerQUICC II technology onto one single board, the computing engines reduce Time-To-Market and increase product reliability. This module can be used standalone and includes a MiniPCI interface for Wireless LAN applications.

Target Applications:

•     Ethernet Routers and Switches
•     Mass Storage Systems
•     Network Appliances
•     Printing and Imaging Systems

Feature List

• Processor: Freescale PowerQUICC II MPC8245 PowerPC
• RAM: Up to 256MB SDRAM
• FLASH: Up to 64MB
• Ethernet: 1 x 10/100
• Serial Ports: 2 x RS-232
• Expansion: EP S Bus for direct access to processor signals, PCI 2.2 bus through PMC connectors, mini-PCI Type III slot
• I2C Devices: EEPROM, RTC, Temperature Sensor
• Power Supply: 5 VDC single supply
• Form Factor: PrPMC
• Debug: COP/JTAG
