EP8248E

Feature List

  • Runs as a standalone development board!
  • Processor: Freescale PowerPC PowerQUICC II MPC8248
  • RAM: Up to 128MB SDRAM
  • FLASH: Up to 64MB
  • Ethernet: 2 x 10/100
  • Serial Ports: 2 x RS-232
  • Expansion: EP S Bus for direct access to processor signals
  • I2C Devices: EEPROM
  • Power Supply: 5.25 to 3 VDC single supply in standalone mode
  • Form Factor: PCI Edge card with 3.3V PCI Signaling
  • Debug: JTAG
  • Emissions: EN 55022 Class A, FCC Class A

Target Applications:

  •     Network Encryption
  •     VPNs and Secure Routers
  •     Industrial Control
  •     High-end Imaging
  •     Test and Measurement Equipment

The EP 8248 computing engine takes advantage of the high performance networking capabilities of the Motorola PowerPC 8248 processor. By integrating all of the features of the PowerQUICC II technology onto one single board, the computing engines reduce Time-To-Market and increase product reliability for complex high-speed networking applications. Scaleable in size and flexible in configuration, they provide a production-ready platform for tomorrow's networks.

Note: This board uses 3.3V PCI Signaling. If you intend to use the product with a PCI carrier please ensure that supports the appropriate signalling voltage.



Downloads

Manual

Data Sheet

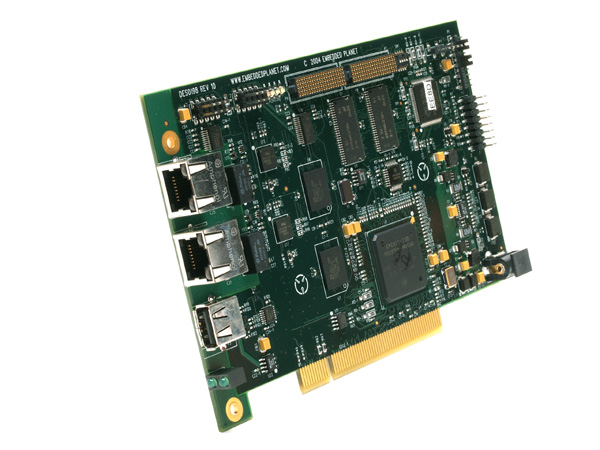

EP8248E View Larger
