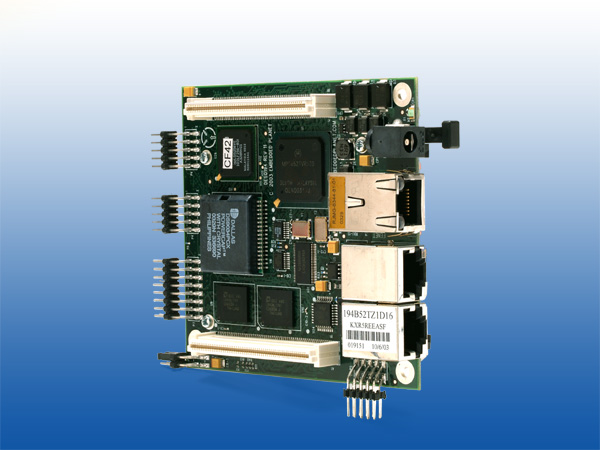

EP852

The EP 852 single board computers take advantage of the high performance networking capabilities of the Motorola PowerPC MPC852 processor. By integrating all of the features of the PowerQUICC technology onto one single board, the computing engines reduce Time-To-Market and increase product reliability. Scaleable in size, flexible in configuration, and expandable through the expansion bus they provide a production-ready platform for designing, developing, and deploying your network ready OEM design. Available in a Board Development Kit and in production quantities.

Target Applications:

•     Ethernet Routers
•     Wireless LAN
•     LAN Switches
•     Line Cards

Feature List

• Processor: Freescale PowerQUICC I MPC852 PowerPC
• RAM: Up to 64MB SDRAM
• FLASH: Up to 16MB
• PCMCIA: Single Type I, II, or III slot
• NVRAM: Up to 512kB, with RTC
• Ethernet: 1 x 10/100, 1 x 10
• Serial Ports: 2 x RS-232
• Expansion: RPX Bus for direct access to processor signals
• I2C Devices: EEPROM, Temperature Sensor
• Power Supply: 5 to 3.3 VDC single supply
• Mechanical: 3.775" x 3.55"
• Debug: JTAG
