EP8xxC

Feature List

  • Runs as a standalone development board!
  • Processor: Freescale PowerQUICC I MPC855, MPC857, MPC859, MPC860, MPC862, or MPC866
  • RAM: Up to 128MB
  • FLASH: Up to 64MB
  • NVRAM: Up to 512KB with RTC
  • Ethernet: 1 x 10/100, 1 x 10
  • Serial Ports: 2 x RS-232
  • Expansion: RPX Bus for direct access to processor signals
  • I2C Devices: EEPROM, Temperature Sensor
  • Power Supply: 5.25 to 3 VDC single supply
  • Mechanical: 3.775" x 3.55"
  • Debug: JTAG

Target Applications:

  •     Low Cost Communications
  •     Networking Products
  •     xDSL Modems
  •     Routers and Switches

The EP8xx single board computers take advantage of the high performance networking capabilities of the Motorola PowerPC MPC 855, MPC 857, MPC 859, MPC 860, MPC 862 or MPC 866 processors. By integrating all of the features of the PowerQUICC technology onto one single board, the computing engines reduce Time-To-Market and increase product reliability. Scaleable in size, flexible in configuration, and expandable through the expansion bus they provide a production-ready platform for designing, developing, and deploying your network ready OEM design.  Available in a Board Development Kit and in production quantities.



Downloads

Manual

Data Sheet

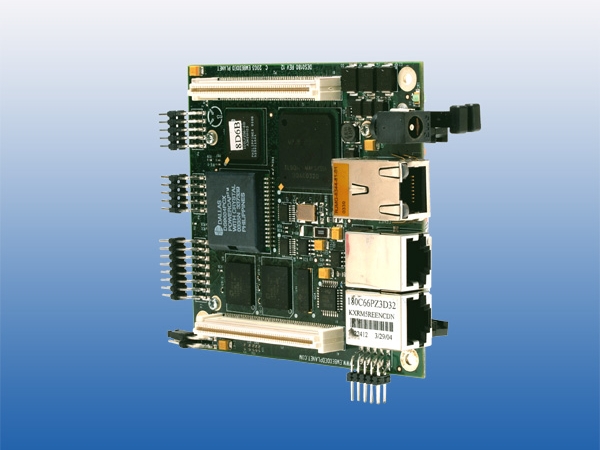

EP8xxC View Larger
