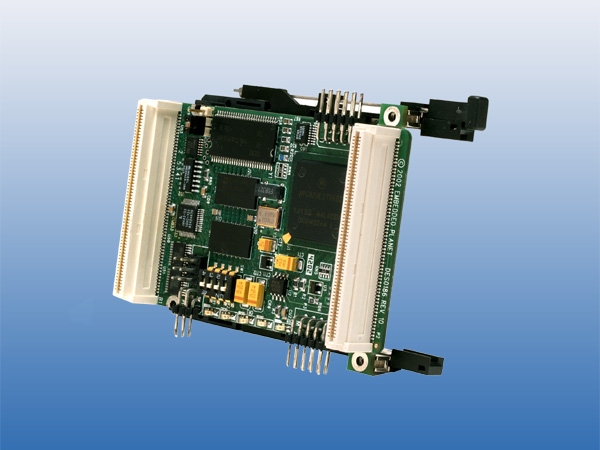

EP8xxCE

The EP8xxCE/CP single board computers take advantage of the Freescale MPC8xx PowerQUICC PowerPC processors. By integrating all of the features of the PowerPC into a production ready embedded development system, the EP8xxCE/CP reduces Time-To-Market and increases product reliability for Communications, Military/Aerospace, Medical, and Industrial applications. The EP8xxCE/ CP single board computers include the RPX bus that provides direct access to MPC8xx processor signals for additional I/O expansion.

Target Applications:

•     Internet Access Products
•     Image Capture Devices
•     Photo Printers
•     Low power portable products

Feature List

• Processor: Freescale PowerQUICC I MPC823, MPC850, MPC855, and MPC860
• RAM: Up to 128MB
• FLASH: Up to 16MB
• Ethernet: 1 x 10
• Serial Ports: 1 x RS-232
• Expansion: PCMCIA Type I, II, III socket, RPX Bus for direct access to processor signals
• I2C Devices: EEPROM, Temperature Sensor
• Power Supply: 5.25 to 3 VDC single supply
• Form Factor: Credit Card (54mm x 95.6mm)
• Debug: JTAG
