EP4080A

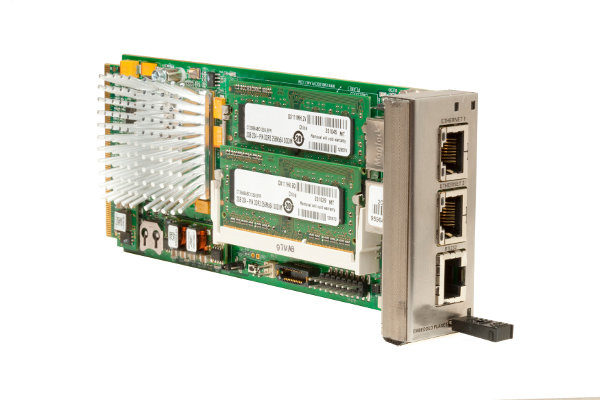

The EP4080A is a single width, full height AMC processor board featuring the high performance Freescale QorIQ P4080 eight core PowerPC processor operating at up to 1.5GHz. The highly integrated multi-core processor makes the EP4080A a natural fit for combined control and data plane applications on a single board, thereby reducing system cost and power consumption. With broad operating support, the EP4080A is built for a broad range of demanding applications in wireless basestations, media gateways, enterprise network access systems, test and measurement systems, and server blades.

The EP4080A can run in stand-alone mode on your desktop. For high speed point-to-point access to AMC cards, consider the EP AMC DEV chassis:

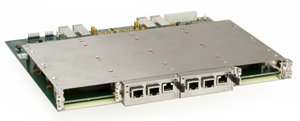

The EP AMC DEV

Or deploy the EP4080 in our aXcelent MicroTCA chassis:

The EP aXcelent 1U MicroTCA

For fabric connectivity the EP4080A offers extreme flexibility, while maintaining standards compliance. All versions of the board support gigabit Ethernet on AMC channels 0 an 1, compliant with AMC.2, Type E2. The fat pipe region of the AMC (channels 4 - 11) can be configured on a build basis to support 10G Ethernet XAUI, Gen 2 PCI express, and SRIO.

At the heart of the EP4080A is a Freescale QorIQ P4080 eight-core PowerPC processor. The P4080 is a highly integrated system-onchip (SoC) platform that includes eight e500 PowerPC cores, an integrated security engine, integrated Gen 2 PCI Express, Serial RapidIO, Gigabit Ethernet, 10G XAUI controllers, integrated DDR3 memory interface, and a pattern matching engine for packet inspection. The highly integrated SoC architecture improves system performance, increases system flexibility, lowers power consumption, and reduces overall system cost.

Target Applications:

•     Base Station Controllers
•     Radio Network Controllers
•     Consumer Routers
•     IEEE 1588 Connectivity
•     Media Gateways
•     Aerospace and Defense

Feature List

• Processor: Freescale QorIQ P4080 with 8 e500 PowerPC cores scaling to 1.5GHz
• RAM: Up to 8GB of DDR3 in two SODIMMs
• Flash: Up to 128MB NOR Flash and 1GB NAND Flash
• Ethernet: Two GigE ports configurable between the front panel and AMC channels 0 and 1
• AMC Fabric Connectivity: 2 x GbE to AMC channels 0 and 1 with options for Serial RapidIO, Gen 2 PCI Express, and 10G Ethernet XAUI on the fat pipes. The fat pipes can be configured in combinations and be targeted for ports 4-7 or 8-11.
• Serial: Single RS-232 to front panel for monitor port
• Power Supply: Via AMC connector per AMC.0 or from barrel connector when in stand alone mode
• Form Factor: Single width, full height or mid-height AMC.0
• Debug: JTAG/COP via an onboard connector and available on the AMC connector
• Software Support: U-Boot bootloader, Linux, INTEGRITY, and VxWorks BSP available.
