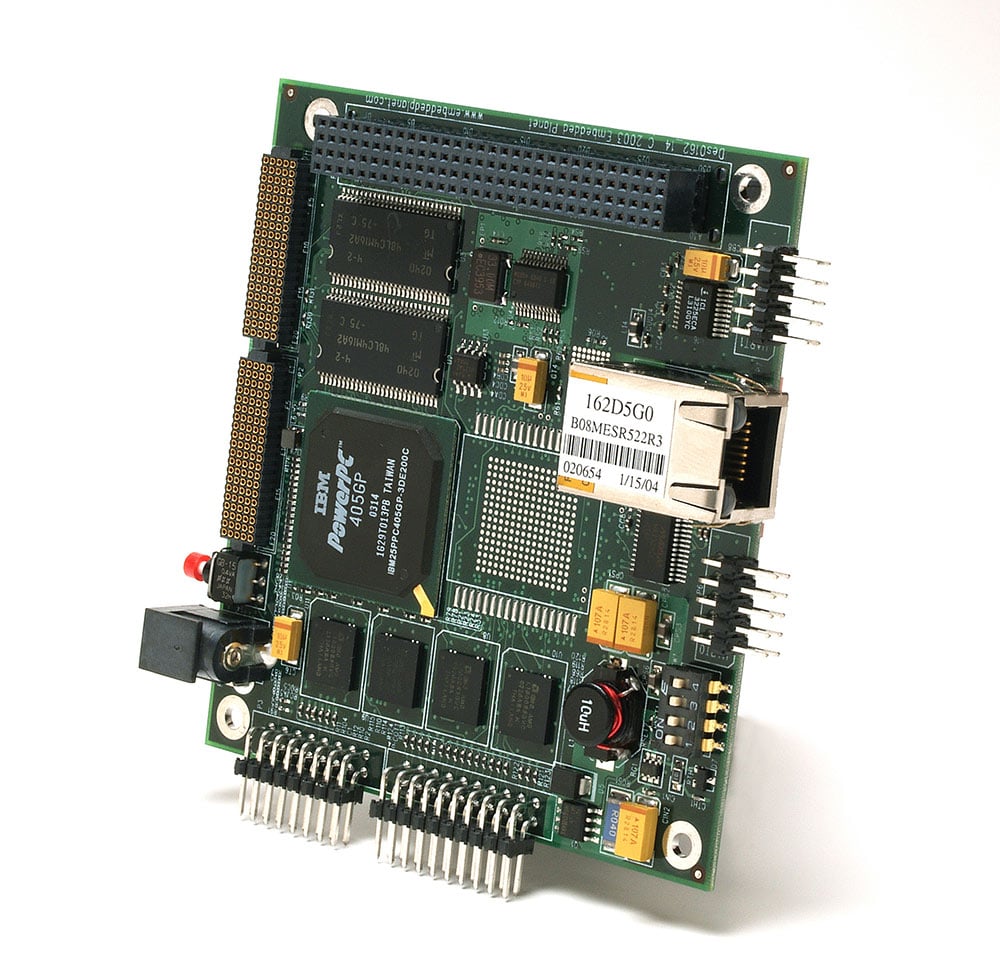

AMCC 405GP and 405GPr Single Board Computer

The EP 405 computing engine takes advantage of the high performance capabilities of the AMCC PowerPC 405GP and 405GPr processors.

The EP 405 computing engine takes advantage of the high performance capabilities of the AMCC PowerPC 405GP and 405GPr processors. By integrating all of the features of this processor onto a single board, the computing engine reduces Time-To-Market and increases product reliability. Scaleable in size and flexible in configuration, they provide a production-ready platform for tomorrow’s networks. The board is PC/104 mechanical sized.

Contact us for more information



Request A Quote

Download Data Sheet Request Manual

Features

  • Runs as a standalone development board!
  • Processor: AMCC 405GP and 405GPr processors
  • RAM: Up to 128MB with ECC
  • FLASH: Up to 32MB
  • NVRAM: Up to 512Kb with Real Time Clock
  • Ethernet: 1 x 10/100 with RJ-45 connector
  • Serial Ports: 2 x RS-232
  • Expansion: PCI-104 PCI bus and EBC Bus
  • I2C Devices: EEPROM, Temperature Sensor
  • Power Supply: 5V wall cube supply
  • Form Factor: PC-104
  • Debug: JTAG RISCWatch & RISCTrace Support
