AMCC PowerPC 440EPx and 440GRx Single Board Computer

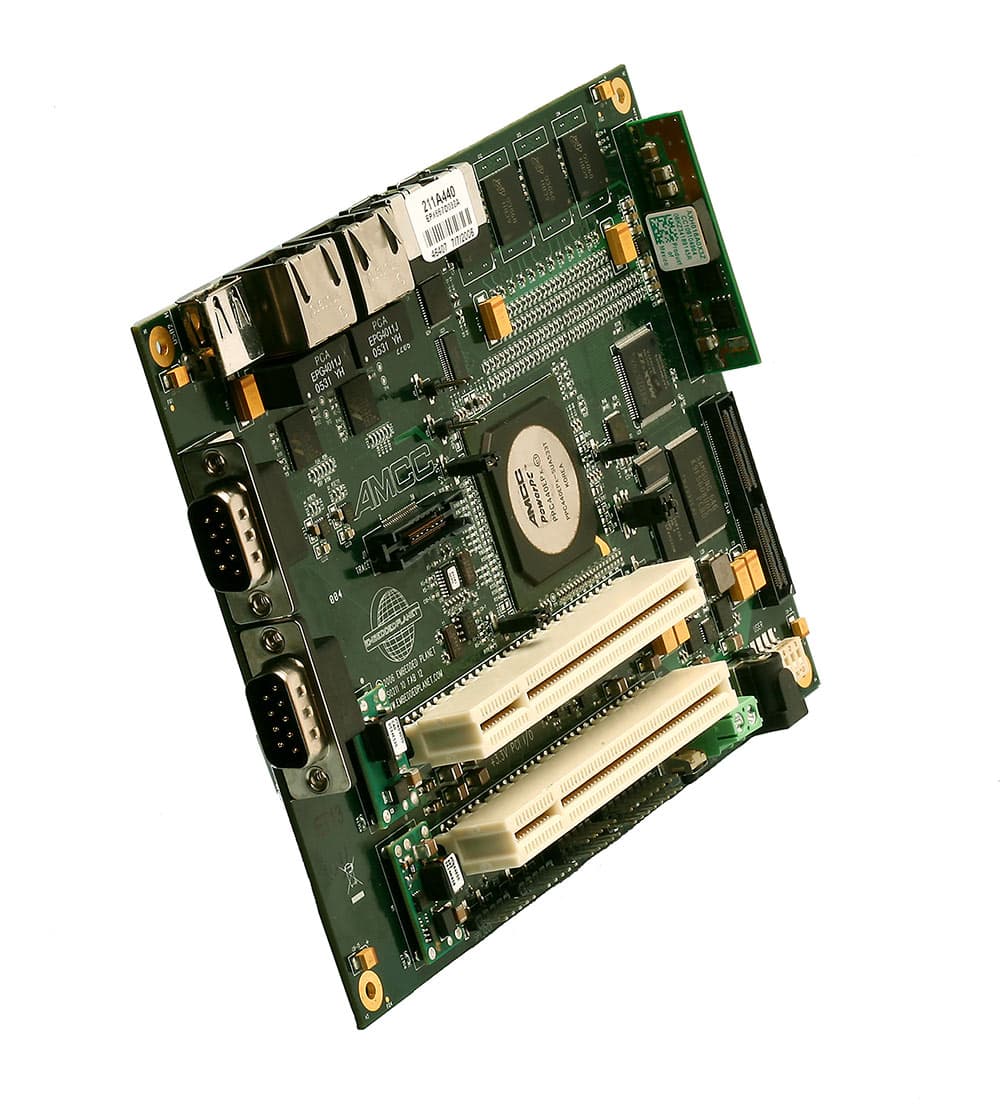

The EP440xC single board computer is a flexible and capable development system for the AMCC PowerPC 440EPx and 440GRx processors.

The EP440xC single board computer is a flexible and capable development system for the AMCC PowerPC 440EPx and 440GRx processors. The EP440xC board enables rapid prototyping and development of vertical solutions by combining the power of the AMCC PowerPC 440EPx and 440GRx processors with numerous expansion and debug options. It includes PCI slots, serial, USB, and Ethernet interfaces for rapid prototyping of systems using standard peripheral components. In addition a full suite of software including a bootloader, flash programmer, and several operating systems ensures that building a system will be greatly simplified.

The AMCC 440EPx and 440GRx processors are powerful, highly integrated System-on-Chip (SOC) designs. They both run at speeds up to 667MHz and include integrated DDR2 memory controllers and Gigabit Ethernet, UART, I2C, PCI interfaces. In addition the 440EPx includes a floating point unit and USB 2.0 Host and Device controllers with PHYs. The combination of high performance, integrated peripherals, and low power consumption make the AMCC 440EPx and 440GRx ideal for embedded industrial, medical, and networking applications.

Contact AMCC for pricing and availability. For quantities larger than 5 units contact Embedded Planet.

contact us for more information



Request A Quote

Features

  • Runs as a standalone development board!
  • Processor: AMCC PowerPC 440EPx or 440GRx up to 667MHz
  • RAM: 256MB DDR2 RAM
  • FLASH: 32MB NOR Flash and 32MB NAND Flash
  • Ethernet: 2 x 10/100/1000
  • Serial Ports: 2 x RS-232
  • USB: 2 USB 2.0 Device, 1 USB 2.0 Host with 440EPx processor
  • Expansion: 2 PCI slots, I2C/SPI header, EBC Connector
  • I2C Devices: Serial EEPROM, Temperature Sensor
  • Power Supply: 5V Wall Cube
  • Form Factor: 5(in) x 7(in)
  • Debug: JTAG and RISCTrace with Mictor Connector for Green Hills Super Trace Probe
