Development Board for Embedded Planet Platforms

Empower Your IoT Development

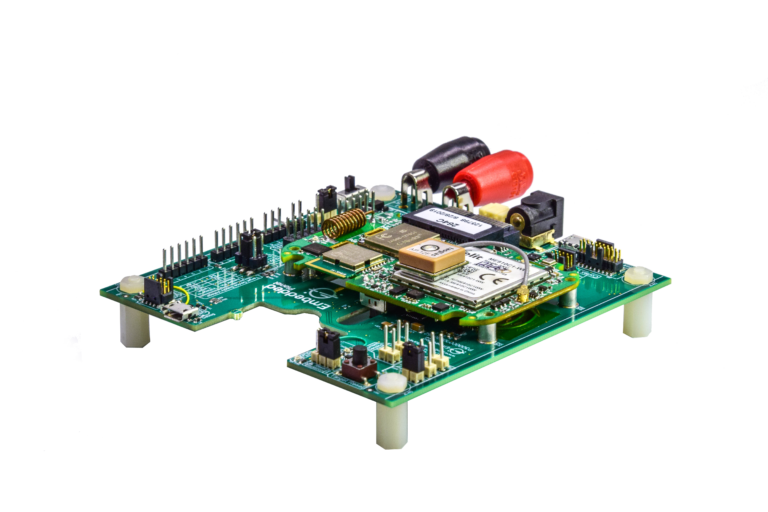

Flidor is a programmer, debugger, and breakout interface for Tectonic Edge™ compatible target devices. The Flidor board includes a DAPlink interface featuring a K20DX microcontroller, allowing the Flidor to power a target MCU and connect it to a computer via USB for debugging. The Flidor board not only breaks out all the pins of the target device’s Tectonic Edge™ connector but can also connect to devices for programming/debugging through the Cortex Debug/+ETM pins. Flidor can be powered over USB, banana jacks, DC barrel jacks, and more. Additionally, Flidor features various options for mounting and orientation in which you can connect Tectonic Edge devices.

Flidor | EP Development Board

Some say the best power source is the one you only have to use once. The Mains-Powered Agora comes equipped with an AC-DC converter and custom plastics so you can plug your Agora into a US-style mains line and forget about it. With the power capability to enable unrestricted continuous cellular transmission for years on end, there’s no limit on the simplicity factor here. Ideal for applications with high power draw, set-it-and-forget-it deployments, and LiPo restrictions.

Agora Development Kit | Agora + extras

Looking to develop your own applications on Agora? The Flidor board is specially designed to complement Agora as the ultimate development board. Featuring an NXP OpenSDA DAPLink debug circuit built around a K20DX microcontroller, Flidor provides an ideal solution to programming and debugging your Agora boards. Flidor also breaks out all accessible connections on the Agora into pin headers, jacks, connectors, and pushbuttons for the most simple of development experiences.

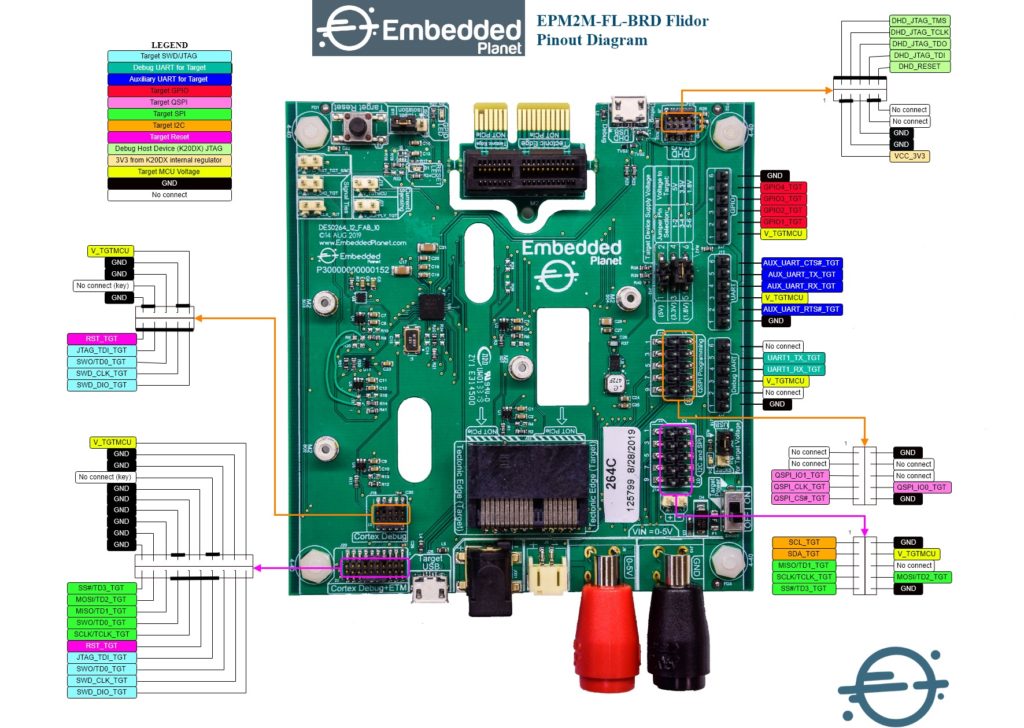

Flidor EPM2M-FL-BRD Pinout Diagram
