Custom Computing Solutions

Do you see something on the Embedded Planet website that is close to what you want but not quite right? We can create a partial or fully custom system solution to meet your needs. From the initial project requirements stage to the production deployment of your final product, Embedded Planet can assist you along the way.

Partnering with Embedded Planet will enable your company to focus on your core expertise and not application infrastructure. Contact us to find out how our experience and services can accelerate your time to market.

Our large network of partners allows us to create entire systems quickly and easily with a single point of contact for support and purchasing. In addition many of our products are built to be highly configurable and expandable. All of our products include some type of expansion bus that can be used to extend the capabilities of the base board with features such as audio, video, and digital and analog I/O.

We can also offer numerous operating system choices so that you aren't limited in your choices. We will offer you a solution that makes the most sense for your application development, performance and cost targets.  And because it is all coming from one place you know that it will work well together, leaving you the opportunity to focus on your application development and not application infrastructure.

Custom Computing Examples from Embedded Planet

Custom Conductively Cooled CompactPCI

Embedded Planet has the capability to repurpose its existing designs into alternative form factors to meet specialized customer requirements. This CompactPCI card began its life as an air-cooled Advance Mezzanine Card and was subsequently morphed into a conduction cooled CompactPCI 3U card to meet our customer’s exacting specifications. Call us today to discuss your specific design requirements

Custom Secure Switch

Embedded Planet was employed by a company that provides imaging systems to unmanned aerial vehicle (UAV) manufacturers to design, build and supply a powerful, compact computing and I/O module for their camera systems. At only 3.5″ x 2.2″ x 1.5″, the board stack will fit into compact spaces, while 13 serial ports, 2 USB ports and 2 Gigabit Ethernet ports provide the necessary contol I/O. At the heart of this system is the EP440xS powered by an AMCC PowerPC 440EPx processor. The 440EPx is a highly integrated SoC that includes a PowerPC core at speed up to 667MHz, a floating point unit, NAND flash controller, DDR2 RAM controller, USB 2.0 host device controllers and dual Gigabit Ethernet MACS.

UAV Payload Controller

Embedded Planet was employed by a company that provides imaging systems to unmanned aerial vehicle (UAV) manufacturers to design, build and supply a powerful, compact computing and I/O module for their camera systems. At only 3.5″ x 2.2″ x 1.5″, the board stack will fit into compact spaces, while 13 serial ports, 2 USB ports and 2 Gigabit Ethernet ports provide the necessary contol I/O. At the heart of this system is the EP440xS powered by an AMCC PowerPC 440EPx processor. The 440EPx is a highly integrated SoC that includes a PowerPC core at speed up to 667MHz, a floating point unit, NAND flash controller, DDR2 RAM controller, USB 2.0 host device controllers and dual Gigabit Ethernet MACS.

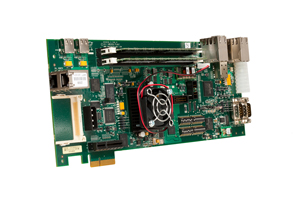

Cavium 6300 Evaluation Board

Embedded Planet was employed by Cavium Networks to develop a standard height PCIe form factor OCTEON II evaluation board based on the Cavium CN66xx processor. The board harnesses the power of the Cavium Networks CN66xx processor running up to six cnMIPS II processor cores at up to 1.3 GHz. The board will support up to 4GB of DDR3 SDRAM, 64 Mbytes of flash and 1GB of NAND flash. Ports include two RGMII and four SGMII Ethernet ports at up to 1,000 Mbps and one 10G XAUI port via a SFP+ transceiver. The two serial ports are configured as a UART0 6 wire and a UART1 4 wire via standard DB9 connectors.
Leveraging our existing knowledge, Embedded Planet can build a custom Cavium module for you faster and cheaper than anyone else. Leverage our expertise and accelerate your time to market.
