Chronos Modem

Embedded Cellular Modem for IoT Applications

Simplifying Cellular Connectivity

Chronos is a small form-factor modem for embedded cellular applications. A mere 29.5mm x 33mm in size, the Chronos module can be mounted using a standard 2×10-pin modem header or the module’s own castellated pads – perfect for streamlined integration into product designs. Chronos also supports GNSS for location tracking.

Do you have questions if Chronos is the right solution for your application?  Contact our team with your questions or find out more about our embedded development develop services.

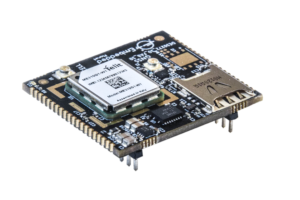

Worldwide Cellular | CAT-M1 (Telit ME310)

Highlighting a Telit ME310 CAT-M1 cellular module, this configuration of Chronos can deliver the cellular connectivity you need where you need it.

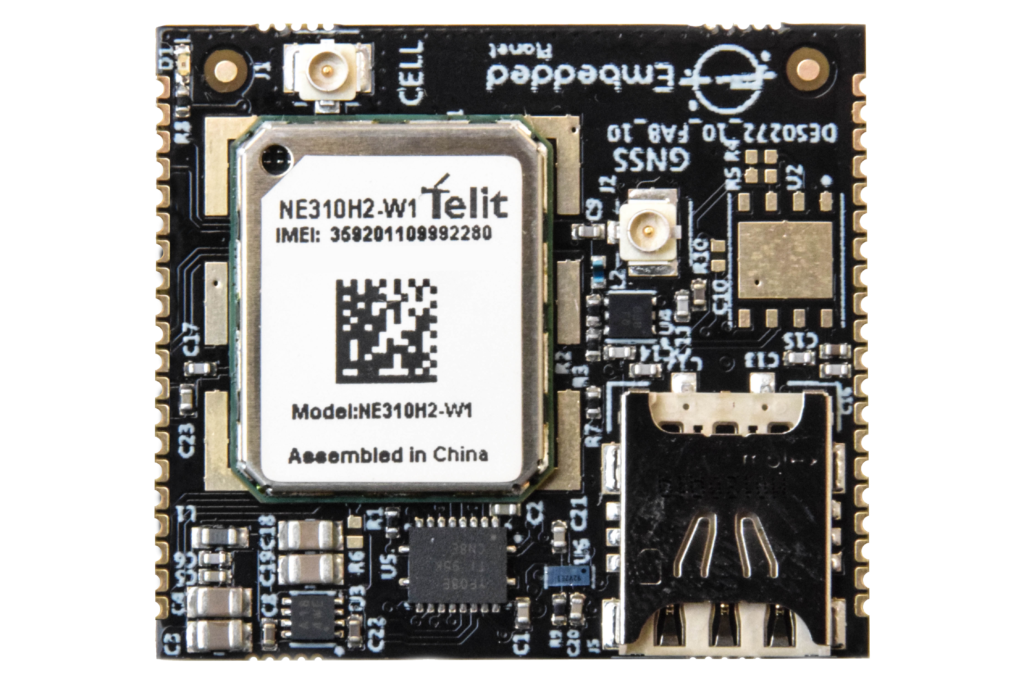

IoT Cellular | NB-IoT (Telit NE310)

A Telit NE310 NB-IoT cellular module powers this configuration of Chronos, enabling you to bring superior connectivity to your NB-IoT infrastructure plans.

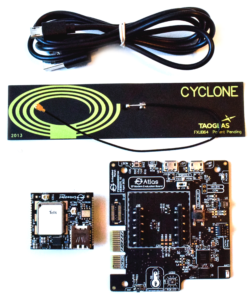

Chronos Development Kit | Chronos + Atlas + accessories

The Chronos Development Kit includes a Chronos modem, Atlas carrier board, cellular antenna, and USB cable. The Atlas board is designed as a streamlined modem programming & development board which pairs seamlessly with Chronos. The Chronos Development Kit includes everything you need to get started rapidly developing with embedded modems & IoT integration.

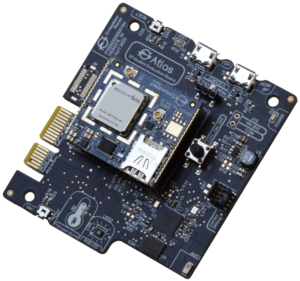

Atlas | Modem Evaluation Board

Bring ease and efficiency to your modem development. Highlighting an nRF52840 host, Atlas incorporates useful prototyping features such as an onboard temperature sensor, pushbutton, RGB LED, bluetooth, USB connector, and more. Designed with Chronos in mind, the Atlas board features a 2×10 modem header along with a Tectonic Edge™ connector for use with Flidor and other EP development tools.

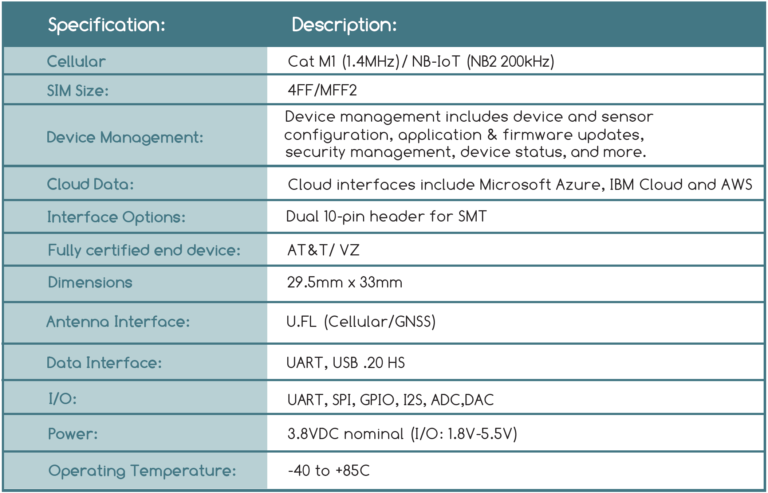

Specifications

Pinout

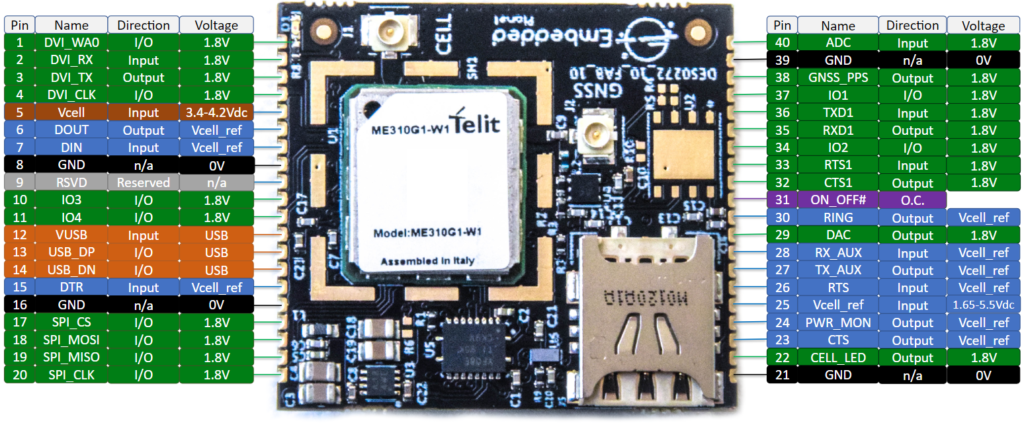

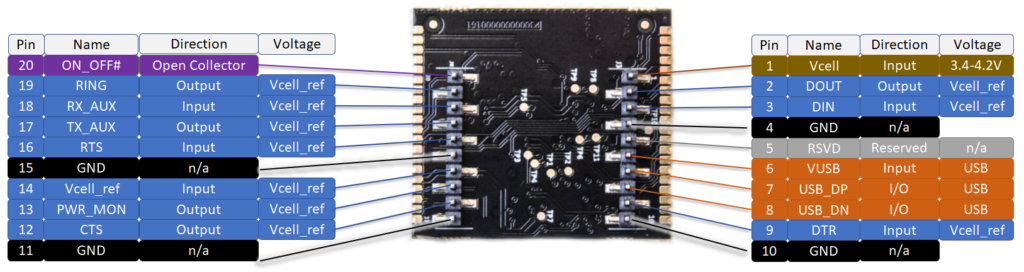

Chronos Pinout with pin details
