EP Connected Vehicle

Vehicle Connectivity Module With CAN, OBD-II, Cellular, GPS/GNSS, & More

Covered EPCV
CTIA Certification Logo
CTIA Device Certified

Wirelessly Monitor Your Vehicle's Data

Using Embedded Planet’s Agora module with a custom host board designed to communicate with vehicles. Customers can monitor from one vehicle up to a large fleet of vehicles through OBDII diagnostic data. Alarms are sent via email or SMS when a monitored PID gets out of spec or a DTC is received.

The epConnected Vehicle includes:

  • GNSS antenna
  • Cell antenna
  • SIM (with data plan)

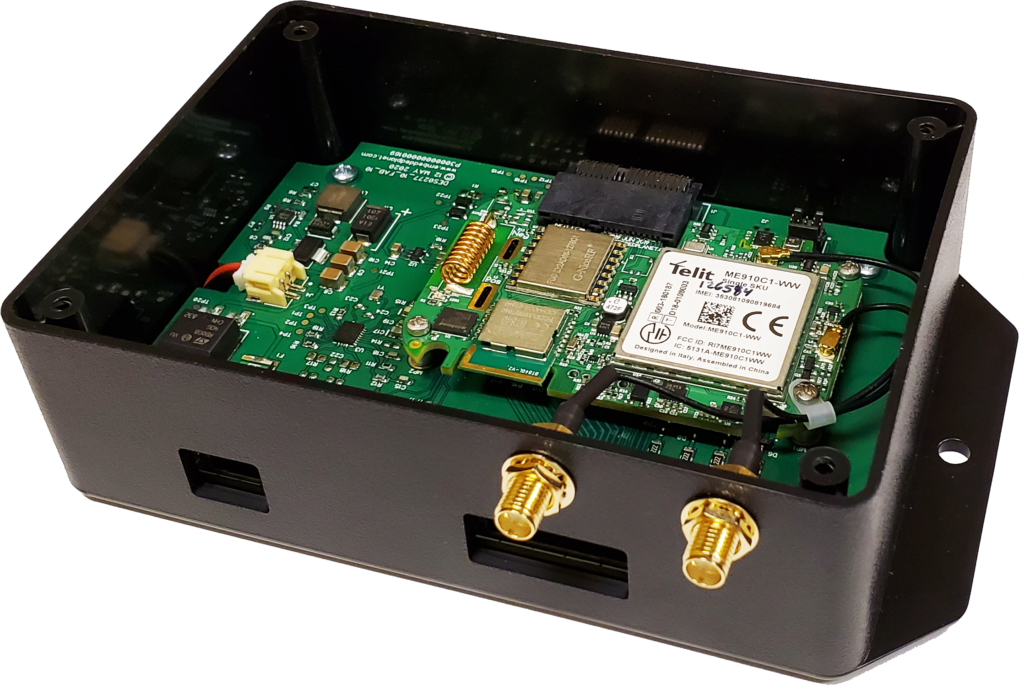

  • Enclosure containing boards+connectors
  • OBDII cable

Designed With Automotive Connectivity In Mind

Connectivity Features:
– Cellular
– CAN-FD (and 2.0A/B) supporting OBD-II (J1979) protocol

Automotive-Grade Connectors:
– Keyed w/ Locking Latch
– Flanged Enclosure (6″ X 3.5″ X 1.5″)

Robust Power Options:
– Supports 12V And 24V Systems
– Built-In Self-Resetting Fuse

Quick Start Kit

Start your project with an epConnected Vehicle Quick Start Kit that includes:<
>  – Enclosure (containing boards, connectors, AT&T based SIM)<
>  – GNSS & Cellular Antennae<
>  – OBD-II Cable

Optional Features & Custom Development

Embedded Planet can work with your team to customize the product related to software, hardware and cloud connectivity. We can get your project completed and get you to production. The system data is always provided directly to the customer and you can also build your own application software.

This product also has other custom add-ons including cables, enclosures, mounting and software / data.

The epConencted Vehicle has custom capabilities that are offered in addition to the standard product including:

  • GPIO
  • RS232
  • BLE
  • NB-IoT
  • Dashboard modifications
  • Alarm modifications
  • Sensors (Environmental, IMU, ToF)
  • J1939
  • Additional carriers (Verizon, roaming, etc) and cell regions

Uses Certified Agora

Features Include:
– Nordic nrf 52840 based
– Connectivity – Cellular, BT and LoRa

Built-In Sensors:
– GPS
– Temp/Humidity/Pressure
– Air Quality (b-VOC)
– Anti-Tamper (Time of Flight)
– Audio
– Accel/Gyro/Magnetometer

Do you have questions if Agora is the right solution for your connected vehicle application?  Contact our team with your questions or find out more about our embedded development develop services.
