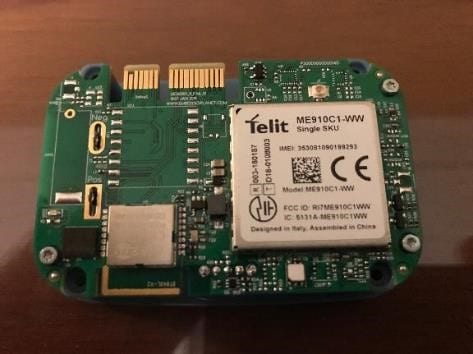

EPM2M-AG-BRD-CELL

The EPM2M-AG-BRD-CELL is a flexible multi-sensor module designed to be used as an assembly for an OEM to add to a system or as a complete solution for monitoring. Cellular connectivity allows the epSensor to be used in locations without Ethernet or Wi-Fi access. Sensors allow for air quality monitoring, temperature / humidity, motion detection, audio detection, light sensing, accelerometer and time of flight.

An expansion port allows for additional custom designed sensors to be integrated into the design for other application needs.

Request A Quote

Download Data Sheet Request Manual Block Diagram

Features

  • Cellular: Cat M1 / NB-IoT
  • Bluetooth: Bluetooth 4.0, 4.2, 5.0 for configuration and setup
  • ARM mbed OS enabled: Runs ARM mbed OS
  • Processor: Sense audio changes in environment
  • FLASH: 32MB QuadSPI NOR flash
  • Operating Temperature: -40 to +85C
  • Power: 2 x AAA or 2 x AA
  • Additional I/O: I/O module available for SPI, I2C, USB and programming
  • Packaging: Custom packaging and brand labeling available
  • Sensor Options:
  • Ambient Light: Maxim MAX44009EDT+
  • 0.045 Lux to 188,000 Lux
  • Temperature/Humidity: Silicon Labs Si7021-A10-GM(1)(R)
  • ±0.4°C (max), -10 to +85°C
  • ±3% RH (max), 0-80% RH
  • Accelerometer: TDK ICM-20602
  • ±2/±4/±8/±16 g linear acceleration full scale
  • ±250/±500/±1000/±2000 dps angular rate full scale
  • Accelerometer/
    Magnetometer:     ST Micro LSM9DS1
  • ±2/±4/±8/±16 g linear acceleration full scale
  • ±4/±8/±12/±16 gauss magnetic full scale
  • ±245/±500/±2000 dps angular rate full scale
  • Air Quality: ST Micro VL53L0X
  • Measures absolute range up to 2 meters
  • Time of Flight: ST Micro VL53L0X
  • Measures absolute range up to 2 meters
  • Audio Microphone: TDK ICS-43432
  • High 65 dBA SNR, -26 dB FS Sensitivity, Frequency Response from 50 Hz to 20 kHz
