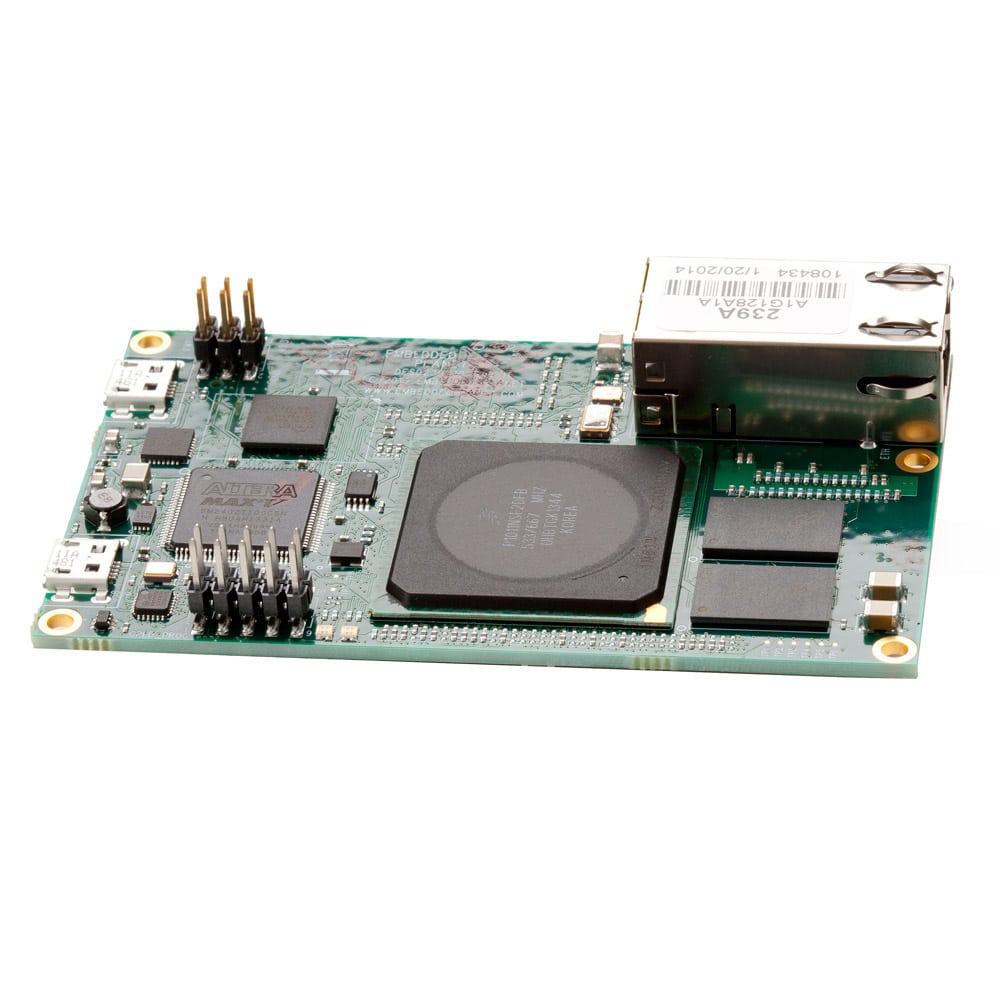

EPT2081xS

The EPT2081xS is a compact, cost-effective, and powerful platform for developing high performance network and control applications including UAVs, imaging and industrial machine control.  At only 3.5″ x 2.2″ x 0.9″, the board will fit into compact spaces, while the USB port (via USB), and 1 Gigabit Ethernet port plus the EBC connector provide the necessary control I/O.

The External Bus Connector (EBC) provides direct access to the T2081 interfaces including SERDES, Ethernet and 1588.  This high-speed compact interface will handle demanding applications.

At the heart of the EPT2081xS is the Freescale QorIQ T2081.  The T2081 is a highly integrated SoC that includes up to four e6500 cores at speeds of up to 1.8GHz, dual floating point units, a flash controller, DDR3L RAM controller, USB 2.0 host and device controllers, and dual Gigabit Ethernet MACs.  The high level of integration increases performance, while lowering system power consumption and cost.

The board stack is supported by the U-Boot bootloader and BSPs for Linux, VxWorks, and Green Hills INTEGRITY.

Target Applications

  •   Imaging Applications
  •     Industrial Control
  •     Networking

Request A Quote

Features

Runs as a standalone development board!
  • Processor: Freescale QorIQ T2081 running at up to 1.8GHz
  • RAM: Up to 256MB DDR3L
  • FLASH: Up to 256MB, with optional SD socket
  • External Bus Connector (EBC): Direct access to SERDES, Clocks (SERDES, System, Ethernet), 1588, TSEC, USB, UARTs, GPIO, I2C, Flash and Power
  • Ethernet: 1 Gigabit port (additional via I/O board)
  • Serial Ports: 2 RS-232s (one on board and one on EBC)
  • USB: USB 2.0 Host and Device ports via I/O board.
  • I2C Devices: EEPROM and Battery Backed Real Time Clock
  • Form Factor: Fanless compact size 3.5″ x 2.2″ x 0.9″ high
  • Debug: On board JTAG debug connector
  • Software: U-Boot Bootloader, Linux, VxWorks, and Green Hills INTEGRITY BSPs available
  • Notes: Available as industrial temperature rated module
